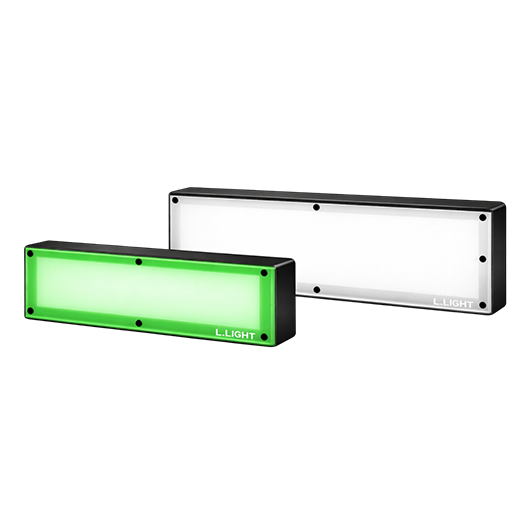

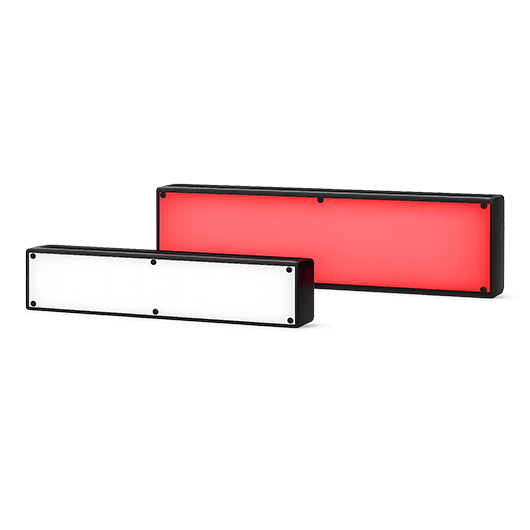

LIBA Series
A versatile lighting solution with flexible mounting angle configuration,
suitable for various inspection applications.
Inspection Applications &
Example Images
Crack Inspection
Detects micro cracks on the surface.
Surface Inspection
Detects surface defects such as scratches, contamination, stains, and foreign particles.
Shape Inspection
Inspects outer shape, dimensions, height, and positional alignment.
Indirect Light Printing Inspection
Inspects printed text, patterns, and markings that are difficult to detect under direct illumination due to reflection.
Features
- Directional Illumination Control
- The illumination angle can be freely adjusted, allowing effective emphasis of edges, shapes, and height variations.
→ Suitable for shape inspection and contour-based inspection.
- Flexible Configuration for Various Inspections
- Single or multiple bar lights can be combined to create single-side, dual-side, or cross-lighting configurations, depending on inspection requirements.
→ Adaptable to a wide range of inspection applications.
- Effective for Highlighting Micro Defects
- Low-angle illumination (dark-field lighting) enhances contrast, making micro cracks, scratches, surface irregularities, and foreign particles clearly visible.
→ Especially effective for crack inspection and surface inspection.
- Easy Reflection Control
- By adjusting the illumination angle, unwanted specular reflections can be avoided, effectively minimizing glare on reflective surfaces.
→ Ideal for inspecting metal, semiconductor wafers, glass, and reflective materials.
Product List
Model
Color
Dimension
Voltage
PDF
